Вакуумный насос для испытаний песка и пыли 60-600 л/ч IP испытательное оборудование HH0810
Контактное лицо : Tessa Huang
Номер телефона : +86 18027403449
Что такое? : +8618027403449
| Количество мин заказа : | 1 набор | Цена : | Negotiatable |
|---|---|---|---|
| Упаковывая детали : | Пластиковая коробка | Время доставки : | 3 дня |
| Поставка способности : | набор 20 в месяц |
| Место происхождения: | Китай | Фирменное наименование: | HeJin |
|---|---|---|---|
| Сертификация: | calibration certificate (cost additional) | Номер модели: | ХХ0804 |
|
Подробная информация |
|||
| Стандартный: | IEC60529, ISO 20653 | Манометр: | 0-0.25MPa |
|---|---|---|---|
| подача воды: | 12,5 Л/МИН ± 5% для IPX5; 100 Л/МИН ± 5% для IPX6 | Диаметр сопла: | Ф6.3мм и Ф12.5мм |
| Время испытания: | Минимальная продолжительность теста: минута 3 | Расстояние от сопла к поверхности приложения: | 2.5-3m |
| Материал сопла: | Нержавеющая сталь СУС#304 | Имя: | Оборудование для испытаний дождя IP |
| Выделить: | IP Test Equipment Nozzle,SUS304 IP Test Equipment Nozzle,Ф12.5mm IP Test Equipment Nozzle |
||
Характер продукции

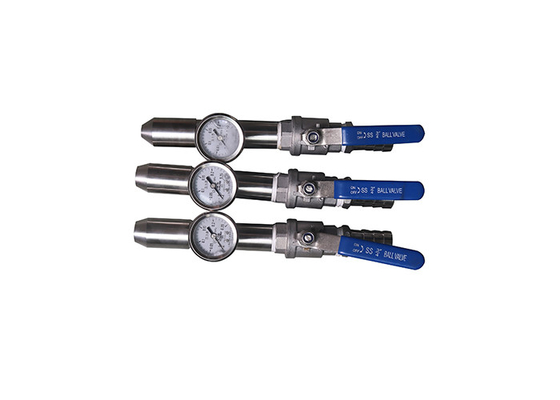

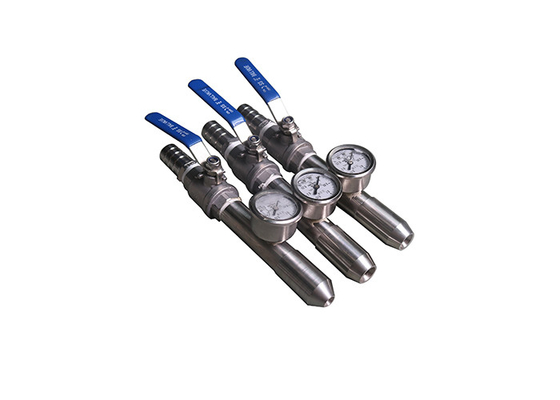

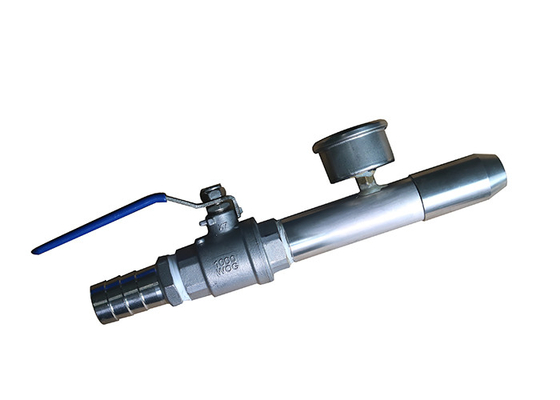

Ingress Protection Test Equipment Nozzle for Protection Against High-velocity Water
Standard:
IEC60529 degree of protection provided by enclosures (IP Code), Figure 6 – Test device to verify protection against water jets (hose nozzle);
ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access, Figure 6 — Nozzle for determining the protection against high-velocity water; degrees of protection against water 5, 6 and 6K
Application:
These handheld devices perform IPX5 and IPX6 testing. Pressure meter was equipped to monitor water flow accurately.
6.3mm Jet Nozzle for IPX5 test; 12.5mm Jet Nozzle for IPX6 test. Ingress Protection Test Equipment
Feature:
Jet Nozzle IPX 5/6 is designed to perform tests in large and small-scale products. It is a great option when a portable tester is necessary. Jet Nozzle IPX 5/6 comes with two nozzles (6.3mm for IPX5 and 12.5mm for IPX6) Jet Nozzle IPX 5/6 meets the testing needs of industry standards such as IEC 60529 but not only.
Parameter:
| Item | IPX5 | IPX6 |
| The nozzle diameter | Ф6.3mm | Ф12.5mm |
| Water flow | 12.5 l/min ± 5 %, Flow meter is adjustable | 100 l/min ± 5 %, Flow meter is adjustable |
| Distance from nozzle to enclosure surface | 2.5-3m. Ingress Protection Test Equipment | |
| Testing time | Minimum test duration: 3 min | |
| Pressure gauge | 0-0.25MPa | |
| Site requirements | Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation | |
| Water supply |
Water flow rate ＞ 12.5L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment |
Water flow rate ＞100L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment |
